INSTALL

Lift your vehicle quickly and safely in 6 simple steps. No professional set up required. Our lifts are engineered for everyday DIY garages, making the process safe, easy and repeatable.

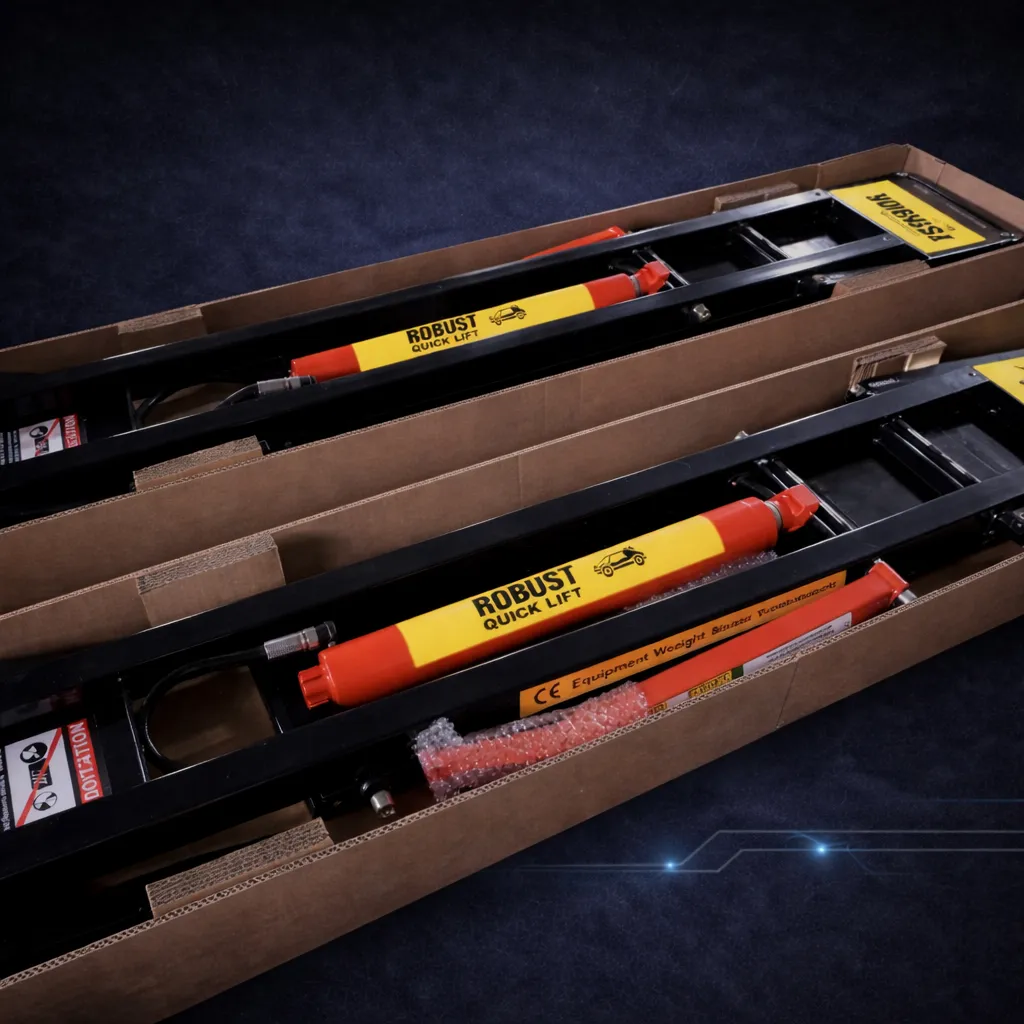

1. Package Opening

Open the package (the cutter should not scratch the surface coating, tubing and other parts of the machine), Take out the lifting frame and power unit and accessories.

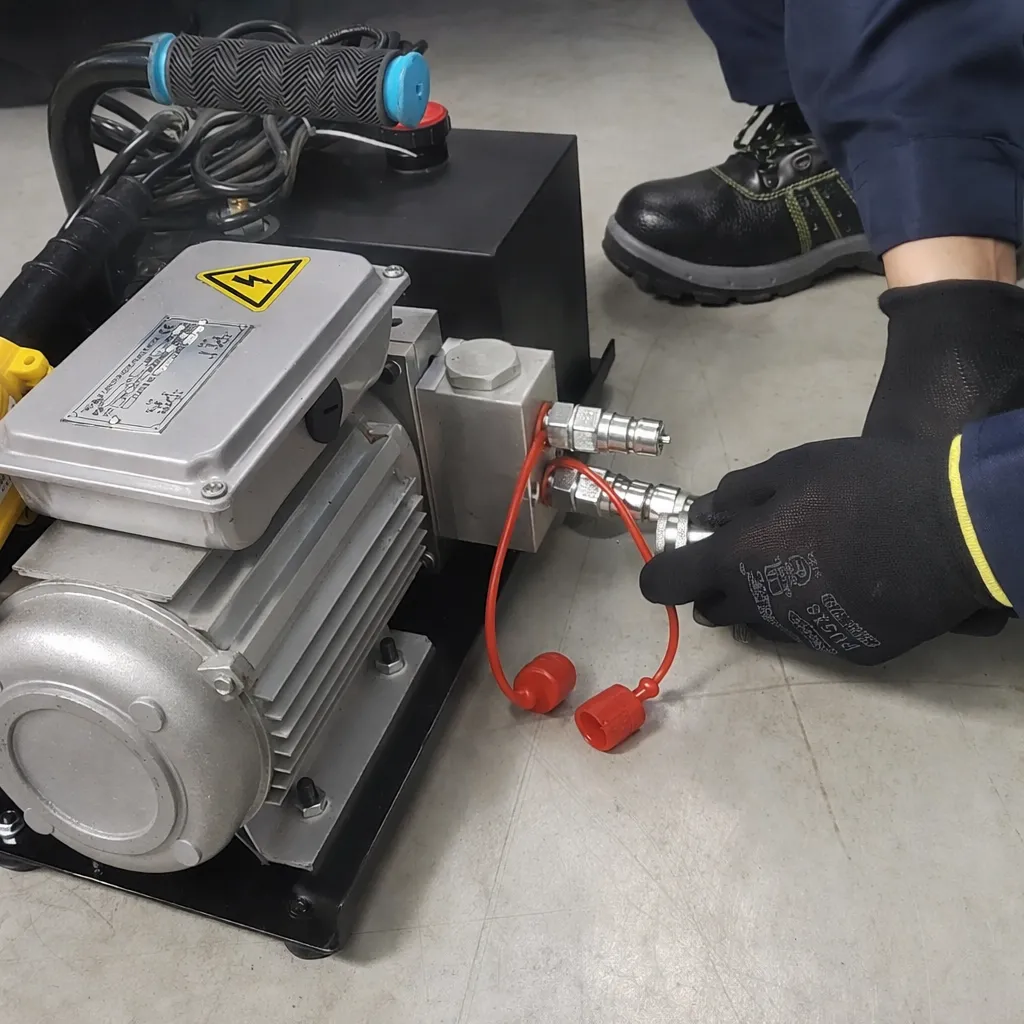

2. Connecting Oil Hose

Connect the 4M oil hose to the power unit’s quick coupling. The first connection may require some force due to limited space. Minor oil leakage is normal during initial attachment.

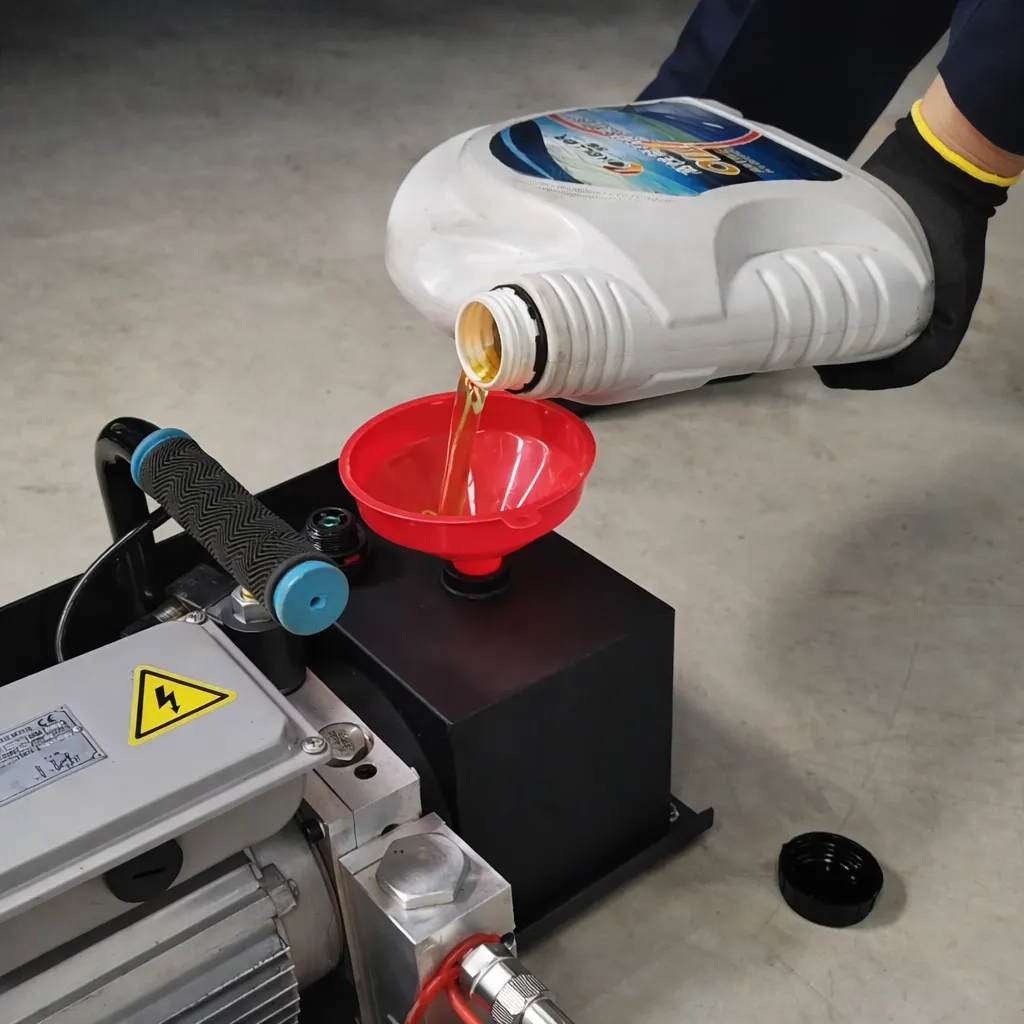

3. Filling with Hydraulic Oil

Open the oil tank cover and add hydraulic oil (4L anti-wear hydraulic oil).

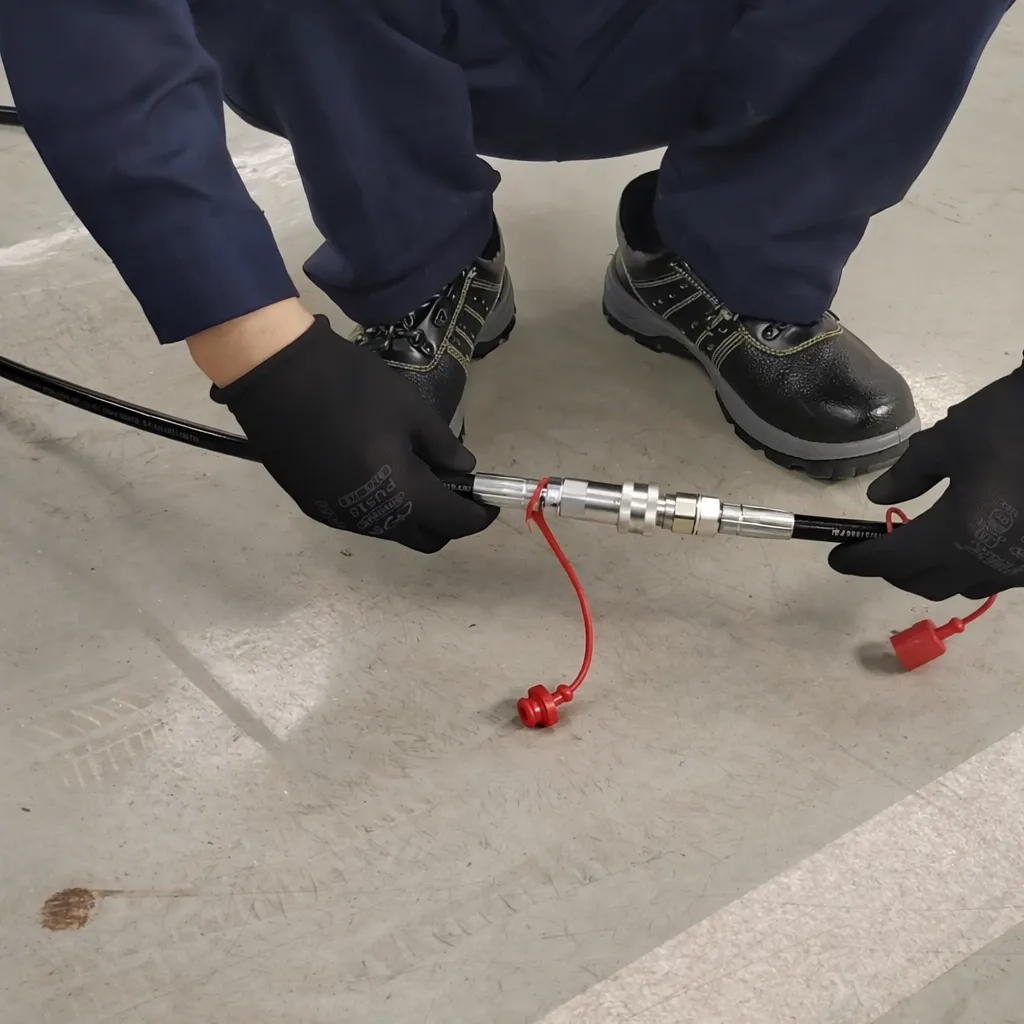

4. Connect Oil Circuit

Connect the oil circuit between the lifting frame and the power unit.

5. Turn the lift upside down

Turn the lift upside down, turn on the power unit, and insert the plug into 220V/50Hz socket.

6. Discharging the gas

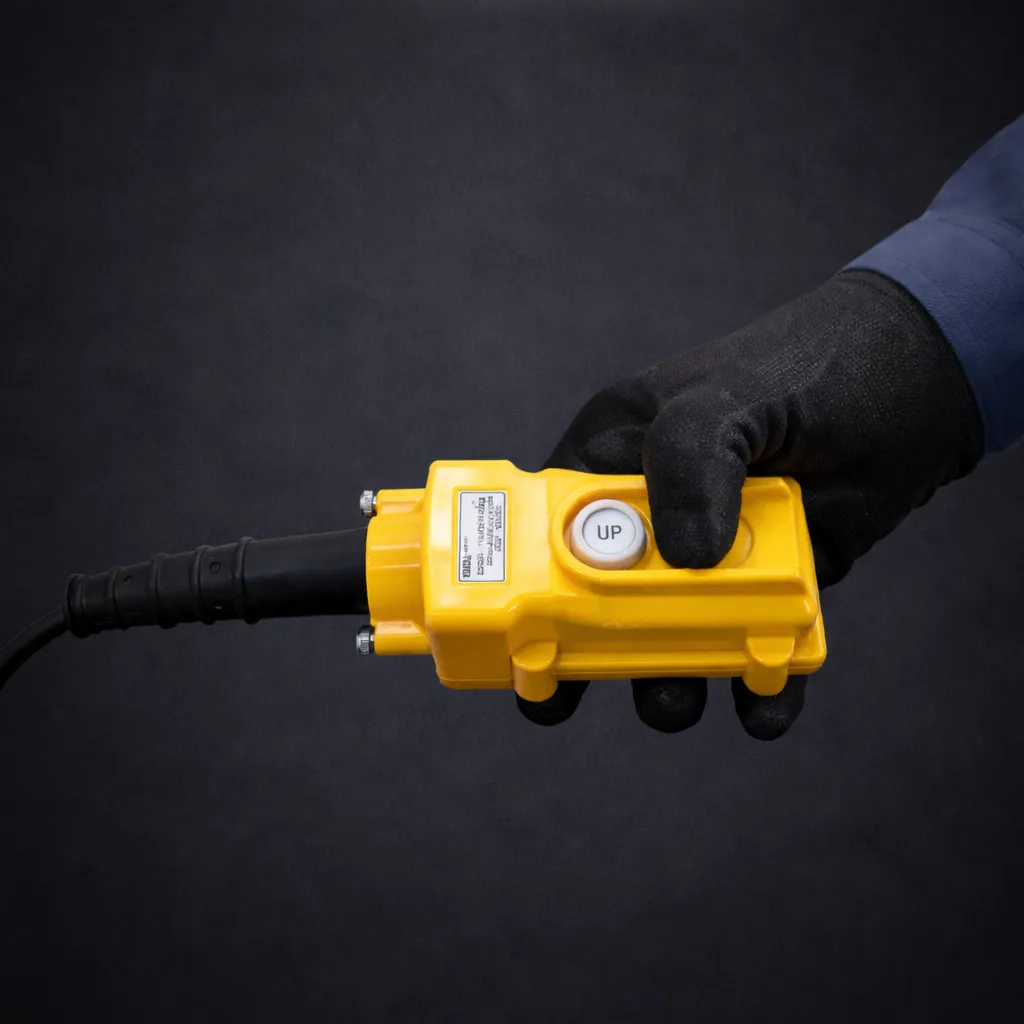

Use the remote to raise the lift to the top and lower it to the ground 2–3 times to discharge air from the system. Ensure the cylinder moves smoothly, then turn over the lift.
